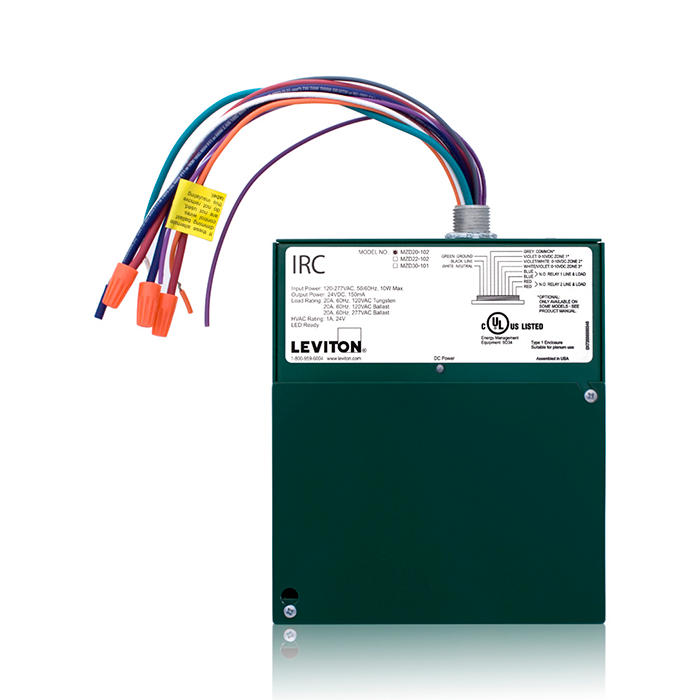

Leviton MZD20-102 MINI Z DIMMING 2 ZONE

UPC : 078477285671

Leviton MZD20-102 MINI Z DIMMING 2 ZONE

he Leviton Integrated Room Control (IRC) combines single room occupancy sensing, daylight harvesting, 0-10V dimming, Partial ON, Partial OFF and demand response capabilities into a single, easily installed package. IRC features several methods of Ladderless Commissioning™ for install-and-forget convenience, including the AutoCal™ feature which automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance. The IRC ships as either custom kits or a complete kit with a factory configured occupancy sensor, photocell, and 4-button switch. The 4-button switch provides ON, raise, lower, and OFF functionality. The performance, features, and capabilities of the IRC product provide a simple and cost-effective stand-alone energy management solution to maximize energy efficiency and meet energy code mandates for virtually any commercial room control application.

Catalog Number: MZD20-102 Brand Name: miniZ[TM] Type: 2-Zone Lamp Type: Fluorescent Application: Commercial Approval: UL Additional Information: Input Voltage 120/277 VAC CATALOG DESCRIPTION: MINI-Z DIMMING 120 230 240 277 VAC 50/60 HZ INPUT 2 ZONE WITH 2 10V OUTPUTS AND 2 120-277 V RELAYS Category: Lighting Controls Full Size Image Full Technical Description: 2-Zone Type; UL Approval; Commercial Application; Fluorescent Lamp Type; Input Voltage 120/277 VAC Made in USA: Yes Manufacturer: Leviton Mfg. Co., Inc. Manufacturer Brand: Leviton Mfg. Co., Inc. Material Safety Data Sheet (MSDS) Product Brochure Product Description: Leviton MZD20-102 Mini Z Dimming 2 Zone Sub-Category: Lighting Control Unit UNSPSC: 39112401 Unique Product Key: 5835375 comm code enhanced: 74100
