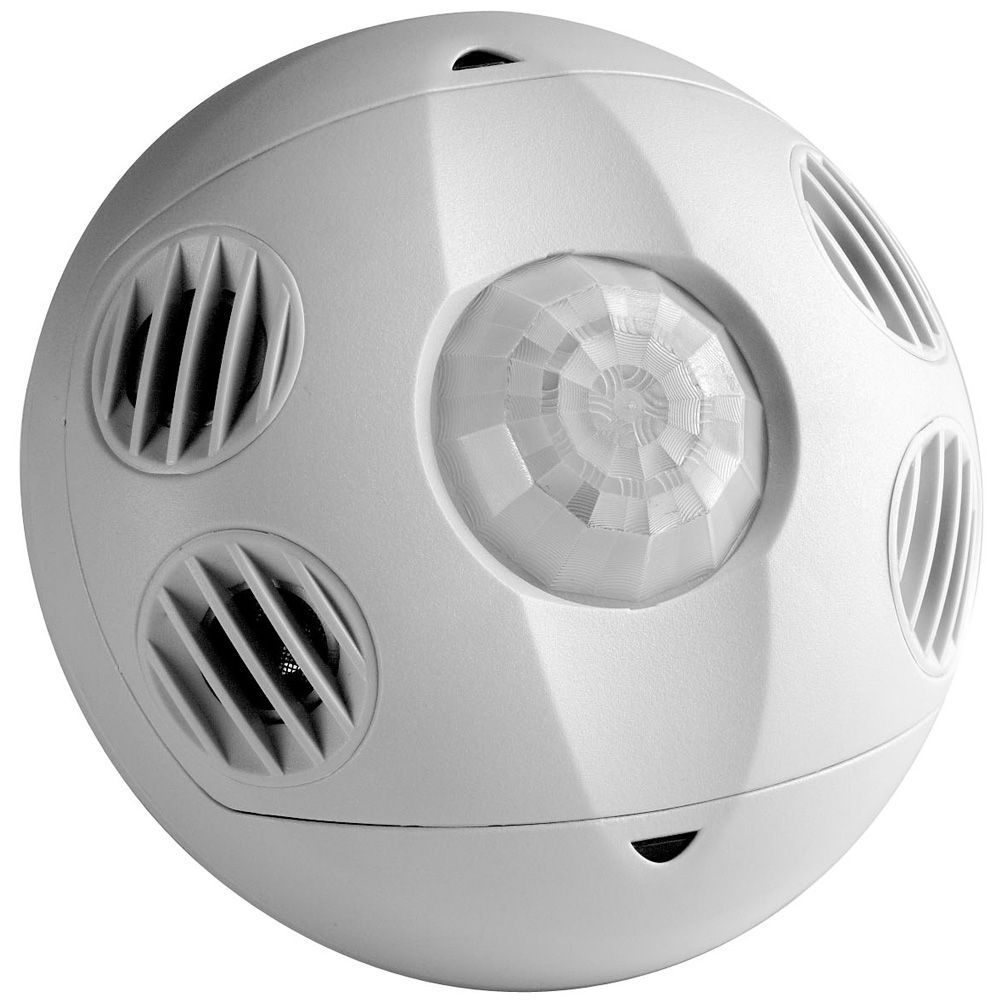

Leviton OSC20-MWW Occupancy Sensor Ceil 2000 Sq Ft Lv

Product Description

UPC: 078477901076

Leviton OSC20-MWW Occupancy Sensor Ceil 2000 Sq Ft Lv

Description: Leviton OSC20-MWW Occupancy Sensor Ceil 2000 Sq Ft Lv Technical Description: Auto Adapting, Walk-Through Type; 4.2 Inch Diameter X 1.57 Inch Depth Size; True White Finish; CUL, CEC, NOM Approval

Occupancy Sensor, Ceiling Mounted, Multi-technology, 24VDC, 30mA power consumption, 2000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S:64'Lx32'W, minor motion: U/S: 45'Lx23'W), red LED=PIR, green LED=U/S auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant. Color: true-white.. NOTABLE FEATURES: Occupancy Sensor, Ceiling Mounted, Multi-technology, 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: PIR:20' radius; U/S: 23'Lx23'W, minor motion: U/S: 17'Lx17'W), red LED=PIR, green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant. Color: true-white.
