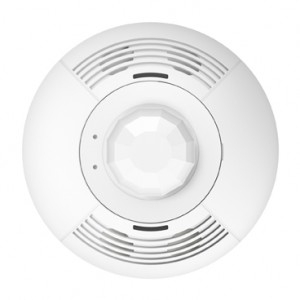

Lutron LOS-CDT-1000R-WH Occupancy Sensor, 20 to 24 VDC, Passive/Ultrasonic Infrared Sensor

Product Description

UPC: 027557212366

Lutron® LOS-CDT-1000R-WH Occupancy Sensor, 20 to 24 VDC, Passive/Ultrasonic Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount Manufacturer Name: Lutron Electronics MPN: LOS-CDT-1000R-WH Brand Name: Lutron® FEPN: LOS-CDT-1000R-WH LU

The LOS-CDT series dual technology ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.

Lutron® Occupancy Sensor, Series: LOS-CDT, 20 to 24 VDC, 33 mA, Passive/Ultrasonic Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, 8 to 30 min Manual, 8 sec Test Time Delay, 6 in Wire Lead Connection, 20 to 24 VDC Control Output, Ceiling Mounting, 32 to 104 deg F, Plastic, White, 4.5 in Dia x 1.4 in D Dimensions

SPECIFICATIONS Amperage Rating : 33 mA Color : White Connection Type : 6 in Wire Lead Control Output : 20 to 24 VDC Dimensions : 4.5 in Dia x 1.4 in D Material : Plastic Series : LOS-CDT Temperature Rating : 32 to 104 deg F Time Delay : 8 to 30 min Manual, 8 sec Test Voltage Rating : 20 to 24 VDC Sensor Type : Passive/Ultrasonic Infrared Coverage : 1000 sq-ft Viewing Angle : 180 deg Mounting Type : Ceiling
